Aseptic Bag in Box Filling Machine for Filling Flexible Aseptic Bags

Short Description:

Aseptic Bag in Box Filling Machine for Filling Flexible Aseptic Bags is developed by EasyReal Tech which is one of the main suppliers worldwide for supplying Aseptic Filling Lines (Involves UHT/HTST sterilizer and Aseptic Bag Filling Machine). Bag-in-box Aseptic Filling Machine is widely used to fill wide range of fruits and vegetable juices, puree, paste, dairy product with high and low acid, high and low viscosity, and liquid products with pieces.

EasyReal Tech is the National High-tech Enterprise located in Shanghai city, China. Aseptic Bag in Box Filling Machine is developed after combining the most advanced science and technology.

Send email to us

Product Detail

Product Tags

Description

Bag-in-box Aseptic Filling Machine is widely used to fill wide range of fruits and vegetable juices, puree, paste, dairy product with high and low acid, high and low viscosity, and liquid products with pieces. After the application of hundreds of successful cases all over the world, ER-AF Series Aseptic Bag in Box Filling Machine is proved to be one of the most reliable and safe plants.
Flexible Bag-in-box aseptic filling machine is specially designed for the filling pre-sterilized bags with volume from 1 liter to 30 liters. And the whole bib aseptic filling equipment is made of Food Grade Stainless Steel by high quality 304/316L.

EasyReal Tech. offers a wide range of Aseptic Bag Filling Machine according to the different filling needs.

For meeting different filling speed of small bags:

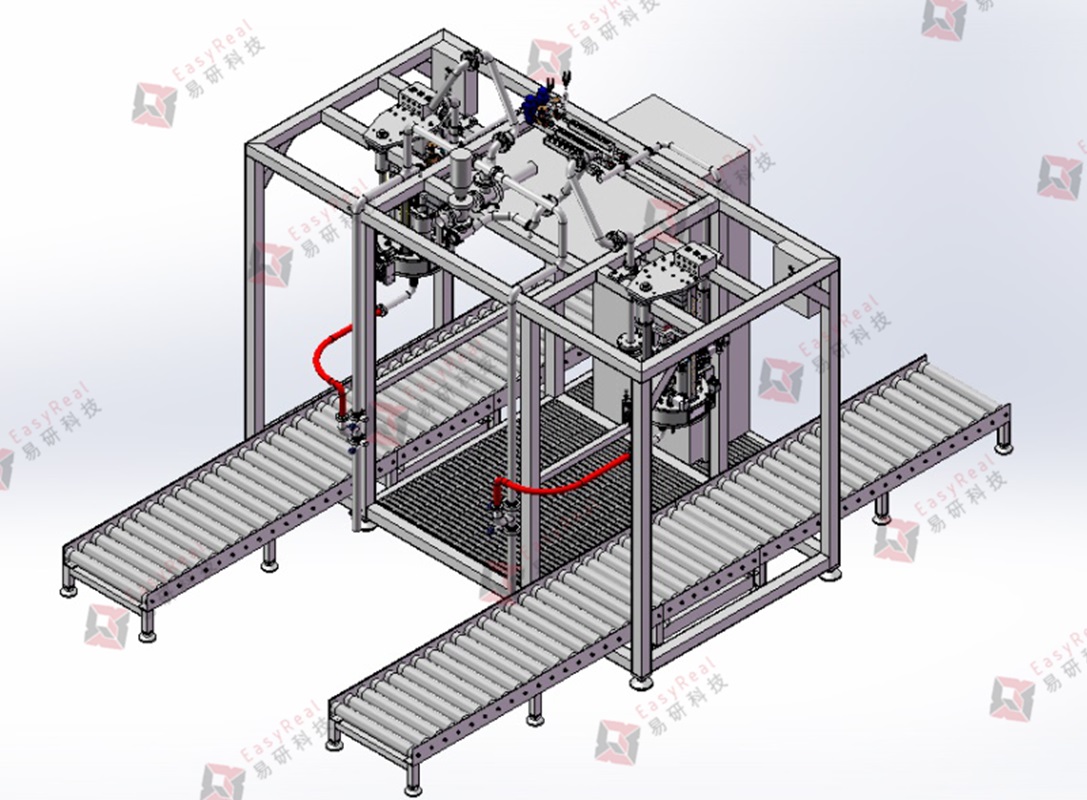

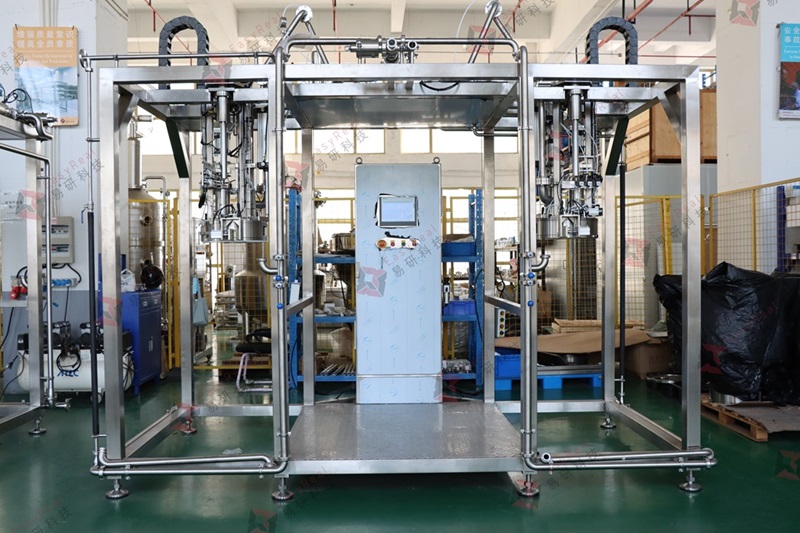

ER-AF Series Aseptic Bag in Box Filling Machine is available to supply Single-head Aseptic Bag in Box Filling Machine, Double-head Aseptic Bag in Box Filling Machine and Multi-head Aseptic Bag in Box Filling Machine.

For meeting different bag sizes :

Aseptic Bag Filling Machine is designed to provide the highest possible level of sterility and productivity for filling bulk aseptic bag-in-box, bag-in-drum and ton-in-bin containers.
The ER-AF Series Flexible Bag-in-box aseptic filling machine is now proven worldwide as the gold standard for aseptic bag filling which virtually eliminates the possibility of filling contamination and spoilage.
EasyReal’s bib aseptic filling equipment with high automation degree offers high performance which has solved different problems from different users from all over the world thanks to its numerous innovations. This flexible and compact bib aseptic filling equipment meets the highest demands of modern industrial production.

Filling products under conditions of absolute asepticity is one of the most critical aspects in the modern plants for food processing, because if during this phase there isn’t a complete reliability on plant aseptic tightness of the plant, it is not possible to have assurances about the preservation of the product.

Why choose EasyReal's Aseptic bag filling machine?

Aseptic bag in box filling machine is one of the most important products manufactured by EasyReal Tech (Involves UHT/HTST sterilizer and Aseptic Bag Filling Machine). Which is the National High-tech Enterprise located in Shanghai city, China. And ISO9001 Quality Certification, CE Certification, SGS Certification and so on are occupied. After combining the most advanced science and technology, EasyReal Tech has developed advanced characters on design and till now more than 40 independent intellectual property rights are developed.

After years of extensive market verification by different users from all over the world, High Reliability,High Safety and High Cost Performance are the gold characteristics of EasyReal ER-AF Series Aseptic bag in box fillers.

Features

HIGH RELIBILITY

MODULARITY

Designed according to the specific requests of the customer and of various production capacities. Single-head type, double-head type and Multi-head type bib aseptic filling equipment are available to meet different actual needs.

HIGH FLEXBILITY

Depend on Actual needs with Different Bags, Aseptic bag in box fillers are available to be extended to fill big bags for aseptic bags from 200 liter to 1400 liter by small aseptic filling plant.

VERSATILITY

EasyReal ER-AF Series aseptic bag filling machines can process most of liauid food products, even highly viscous ones such as concentrates or products with pieces such as diced tomato or fruit.

HIGH ACCURACY

By adopting Loading Cells or Flow Meter, high accuracy could be guaranteed.

MUCH EXPERIENCE

With over 20-year experience, after combining the most advanced science and technology, and years of extensive market verification by different users from all over the world, High Reliability, High Safety and High Cost Performance are the gold characteristics of EasyReal ER-AF Series aseptic bag in box fillers.

Application

1. All kinds of liquid products

2. Fruit and vegetable Juice

3. Fruit and Vegetable Puree

4. Fruit and Vegetable Concentrate

5. Liquid Product with Pieces

6. Products with High Acid.

7. Products with Low Acid.

8. Health and Nutritional Products.

Parameters

Name	Single head Aseptic Bag in Drum Filling Machine	Double head Aseptic Bag in Drum Filling Machine	Single head bag in box aseptic filler	Double head bag in box aseptic filler	Flexible Single head bag in box aseptic filler & Aseptic Bag in Drum Filling Machine	Flexible Double head bag in box aseptic filler & Aseptic Bag in Drum Filling Machine	Flexible Single head Aseptic Bag in Drum Filling Machine & aseptic bag in bin filling machine (4-drum in 1-tray & bag-in-bin)	Flexible Double head Aseptic Bag in Drum Filling Machine & aseptic bag in bin filling machine (4-drum in 1-tray & bag-in-bin)
Model	AF1S	AF1D	AF2S	AF2D	AF3S	AF3D	AF4S	AF4D
Capacity (t/h)	up to 6	up to 12	up to 3	up to 5	up to 12	up to 12	up to 12	up to 12
Power (Kw)	1	2	1	2	4.5	9	4.5	9
Steam Consumption (kg/h)	0.6-0.8 Mpa ≈50	0.6-0.8 Mpa ≈100	0.6-0.8 Mpa ≈50	0.6-0.8 Mpa ≈100	0.6-0.8 Mpa ≈50	0.6-0.8 Mpa ≈100	0.6-0.8 Mpa ≈50	0.6-0.8 Mpa ≈100
Air Consumption (m³/h)	0.6-0.8 Mpa ≈0.04	0.6-0.8 Mpa ≈0.06	0.6-0.8 Mpa ≈0.04	0.6-0.8 Mpa ≈0.06	0.6-0.8 Mpa ≈0.04	0.6-0.8 Mpa ≈0.06	0.6-0.8 Mpa ≈0.04	0.6-0.8 Mpa ≈0.06
Bag Size (Liter)	200, 220	200, 220	1 to 25	1 to 25	1 to 220	1 to 220	200, 220, 1000, 1400	200, 220, 1000, 1400
Bag Mouth Size	1" & 2"
Metering Method	Loading Cells or Flow Meter		Flow Meter				Loading Cells or Flow Meter
Dimension (mm)	170020002800	330022002800	170012002800	170017002800	170020002800	330022002800	250027003500	440027003500

Key Components

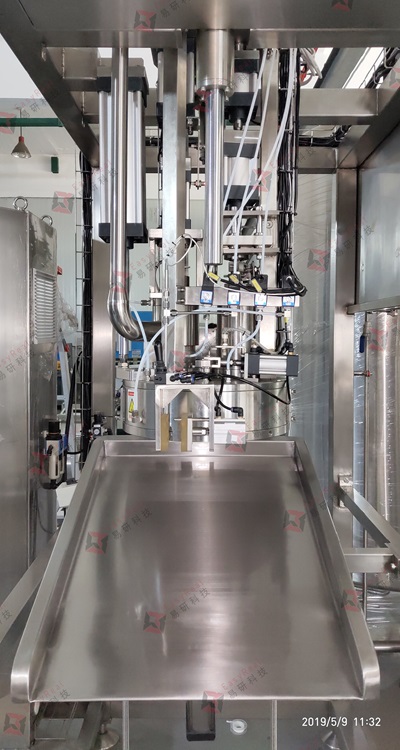

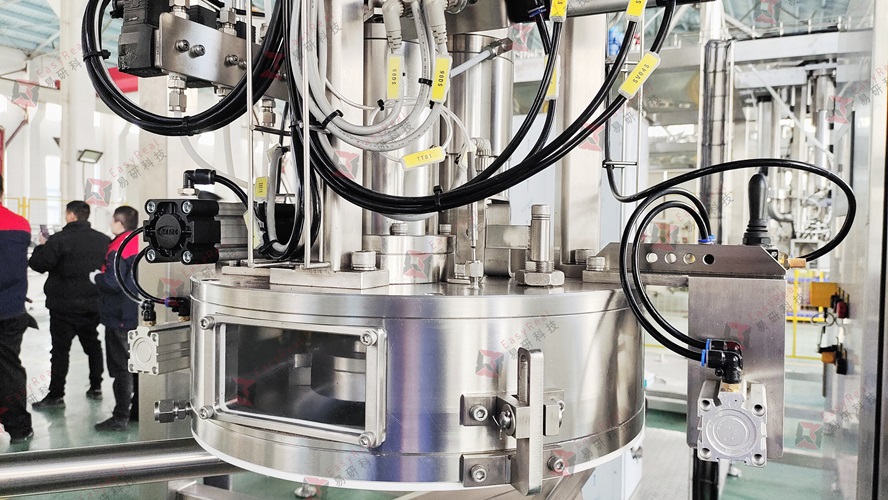

1. Aseptic Filling Head(s)

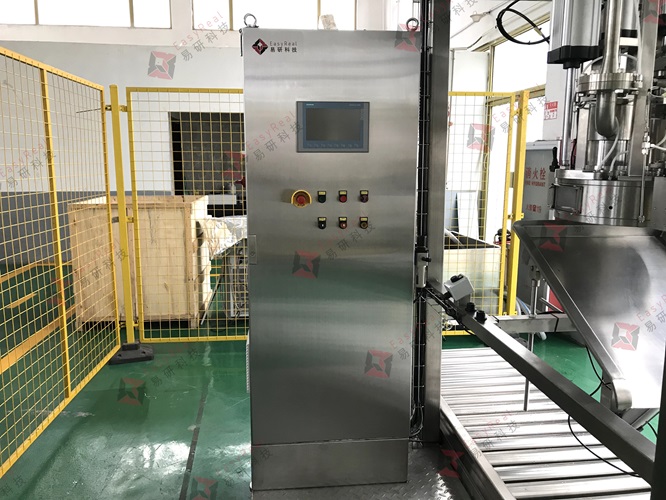

2. Siemens PLC Control System

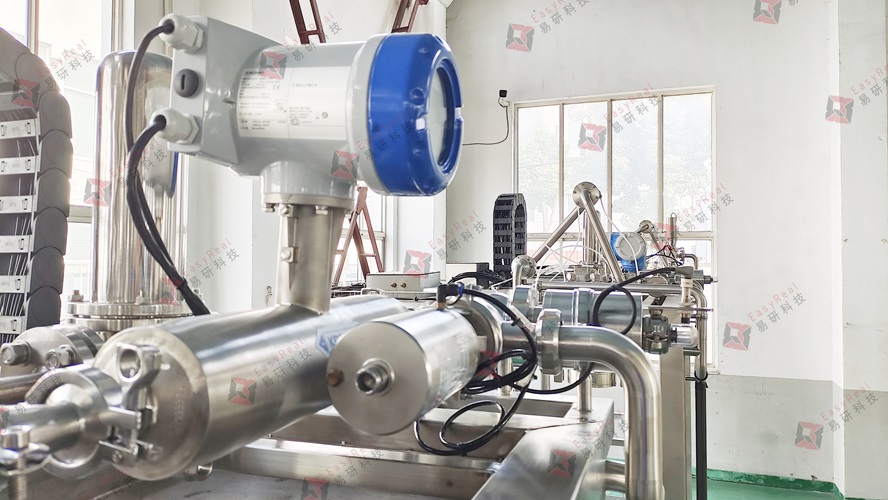

3. Measuring System(with flowmeter or loading cells)

4.Operating Platform and Conveying System.

Details of Sample

Aseptic Filling Machine is Available in other Formats

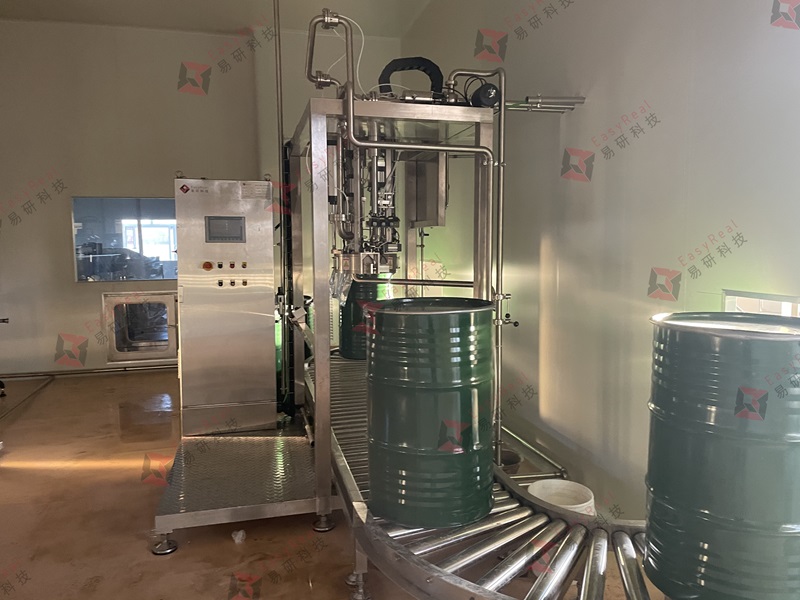

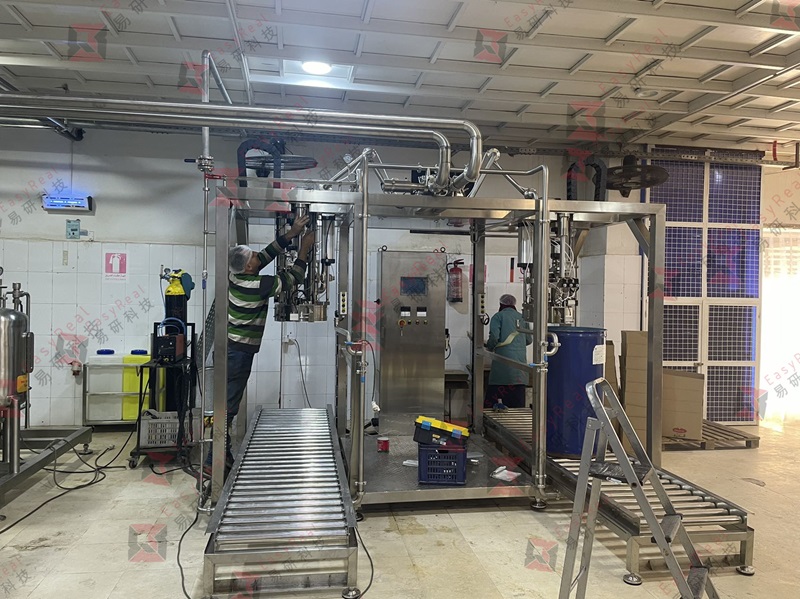

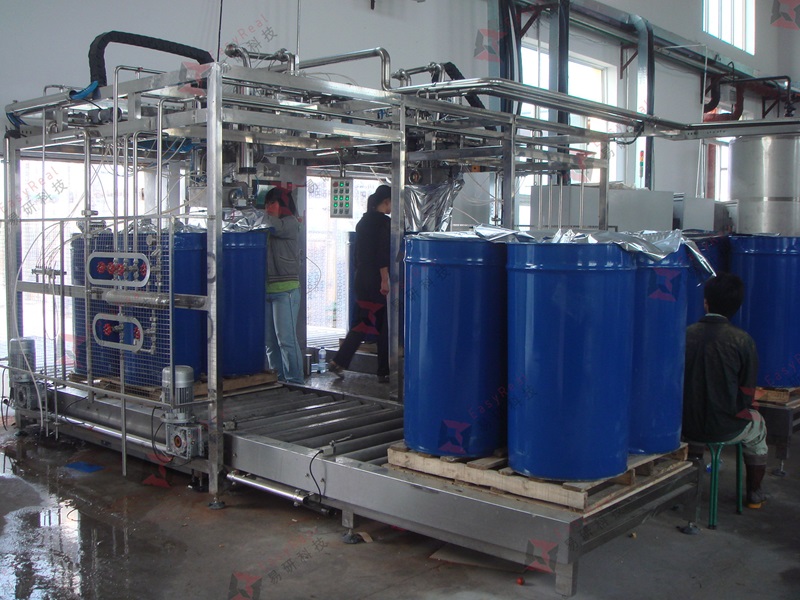

1. Aseptic Bag in drum Filling Machine- 220/220 liters Format.

2. Aseptic Bag-in-box Filling Equipment- 1 to 25 liters Format.

3. Flexible Aseptic Bag-in-box Filling Equipment - Aseptic Bag in Drum Filling Machine- 1 to 220 liters Format.

4. Aseptic Bag IBC Filling Equipment- 1000 to 1400 liters Format.

5. Flexible Bag-in-box Filling Equipment - Aseptic Bag in Drum Filling Machine - IBC Filling Equipment- 1 to 1400 liters Format.

6. Flexible Aseptic Bag in Drum Filling Machine - IBC Filling Equipment Format- 200 to 1400 liters Format.

With Over 20-year Experience

With over 20-year experience, combined with the most advanced science and technology, EasyReal is considered as the professional manufacturer for supplying ER-AF Series Aseptic Filling Machine for filling different liquid products, like puree, juice, concentrate, etc. Depend on actual needs, EasyReal Tech could supply suitable solutions to meet actual needs which is easy to use with high quality and reliability.

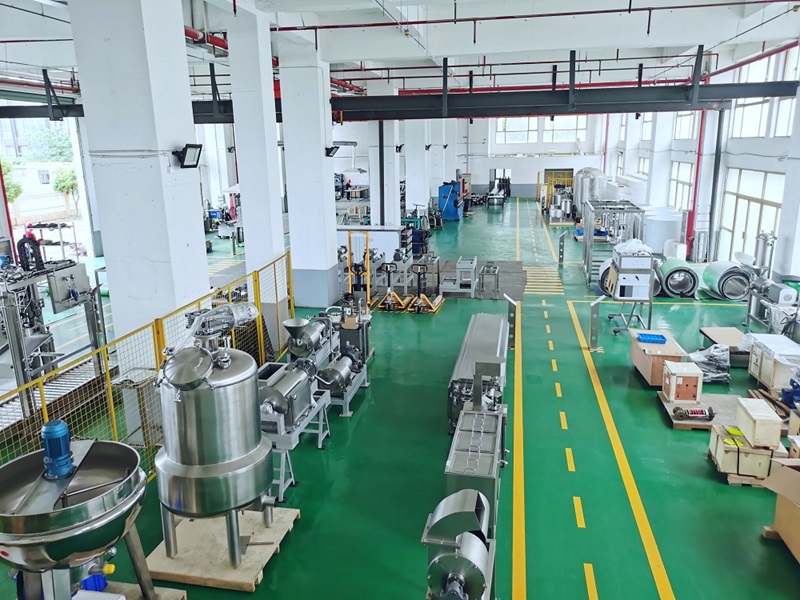

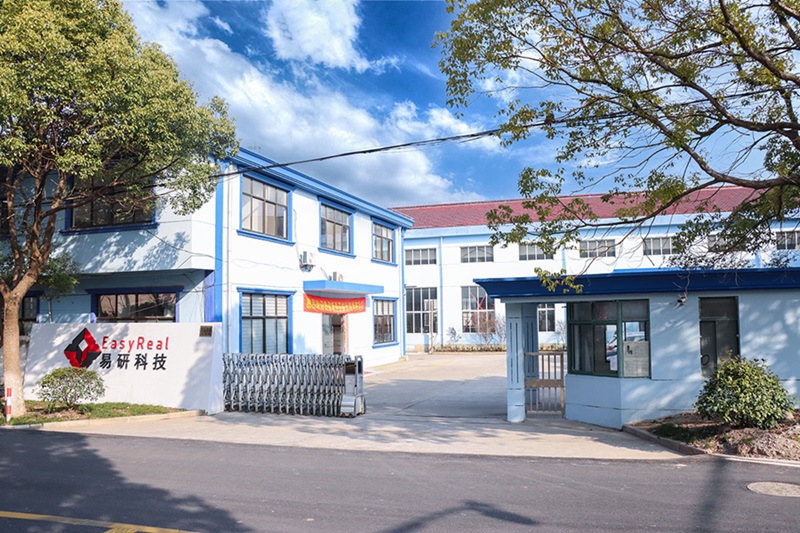

Warmly welcome global friends come for visit and inspect EasyReal’s Shanghai Factory which is located in Shanghai city, China.
