Efficient Steam Injection Machine for Laboratory Testing
EasyReal's Lab scale steam injection machine(DSI) can be a moudle intergrated in different lab & pilot UHT plant. By utilizing direct steam injection, this machine provides rapid heating of liquid products while ensuring precise temperature control. The direct injection of steam facilitates effective microbial inactivation, making it suitable for applications in food processing, pharmaceuticals, environmental studies, and more.
The equipment is characterized by its ability to handle various liquid types, enabling laboratories to perform a wide range of experiments. EasyReal's innovative design on DSI system ensures efficient operation, minimizing energy consumption while maximizing throughput.
-
- 1.Advanced Technology: Incorporates the latest in direct steam injection methods.
- 2.User-Centric Design: Simplified controls for ease of operation.
- 3.Versatile Applications: Suitable for various research needs.
- 4.Compact Footprint: Efficient use of laboratory space.
- 5.Energy Efficiency: Optimized for lower operational costs.
- 1.Food Safety Testing: UHT treatments for shelf-stable products.
- 2.Pharmaceutical Validation: Sterilization processes for injectable solutions.
- 3.Environmental Studies: Treatment of water samples for contaminants.
- 4.Product Development: Formulation testing for new products.
- 5.Quality Control: Routine testing for microbial safety.
| Pilot Direct Steam Injection UHT Systems for Laboratories | |
| Product Code | ER-Z20 |
| Size | 20L/hr (10-40L/hr) |
| Max.temperature steam | 170°C |

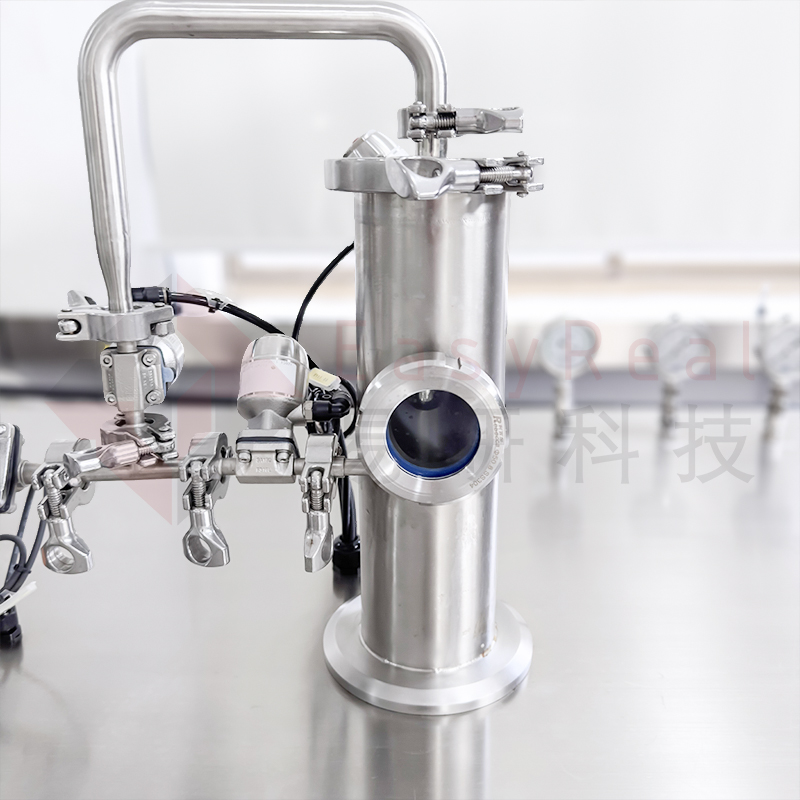

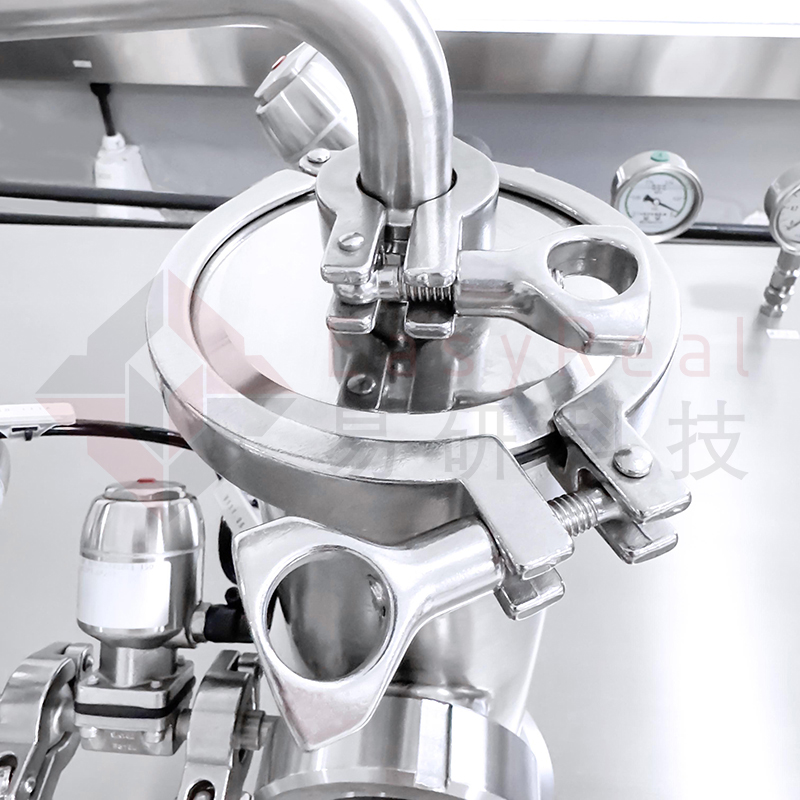

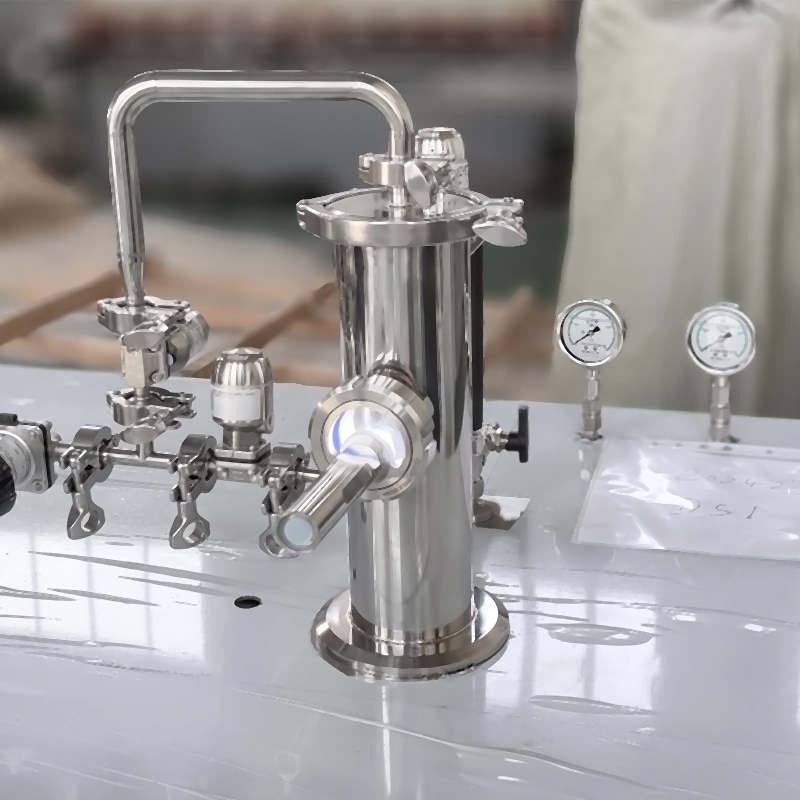

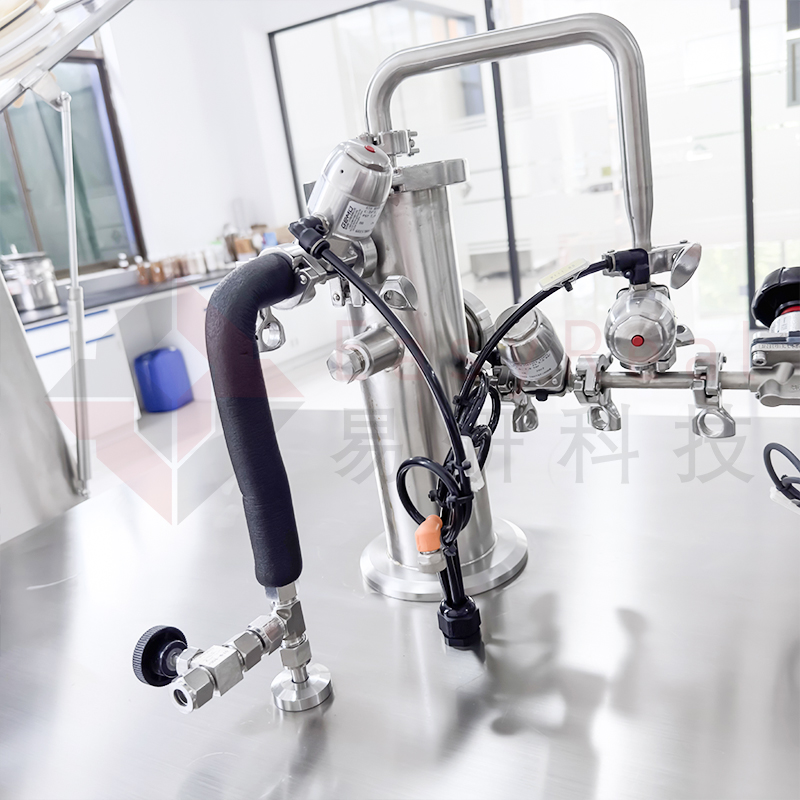

| DSl Heat Exchanger | |
| Internal diameter/ connection | 1 / 2 |
| Max. particle size | 1mm |
| Viscosity injection | Up to 1000cPs |
| Materials | |
| Product side | SUS316L |
| Weights & Dimensions | |
| Weight | ~270kg |
| LxWXH | 1100x870x1350mm |
| Required utilities | |
| Electrical | 2.4KW, 380V, 3-phase power supply |
| Steam for DSl | 6-8 bar |
The steam injection process involves the controlled introduction of steam into a liquid stream. This rapidly increases the liquid's temperature, facilitating efficient thermal treatment. This method is widely used in laboratories for its ability to achieve precise temperature profiles
Direct steam injection (DSI) operates on the principle of transferring heat from steam directly to the liquid product. The steam's high thermal energy is quickly transferred to the liquid, resulting in rapid heating. This method is particularly effective for applications requiring swift sterilization and quality preservation.
EasyReal Tech. is the State-certified High-tech Enterprise located in Shanghai City, China which has obtained ISO9001 Quality Certification, CE Certification, SGS Certification, etc. We provide the European-level solutions in the fruit &beverage industry and have received widespread praise from customers from both domestically and overseas. Our machines have already been exported all over the world including Asian countries, African countries American countries, and even European countries. Till now, more than 40+ independent intellectual property rights have been occupied.
The Department of Lab&Pilot Equipment and the Department of Industrial Equipment were operated independently, and the Taizhou Factory is also under construction. All these lay a solid foundation for providing better services to customers in the future.

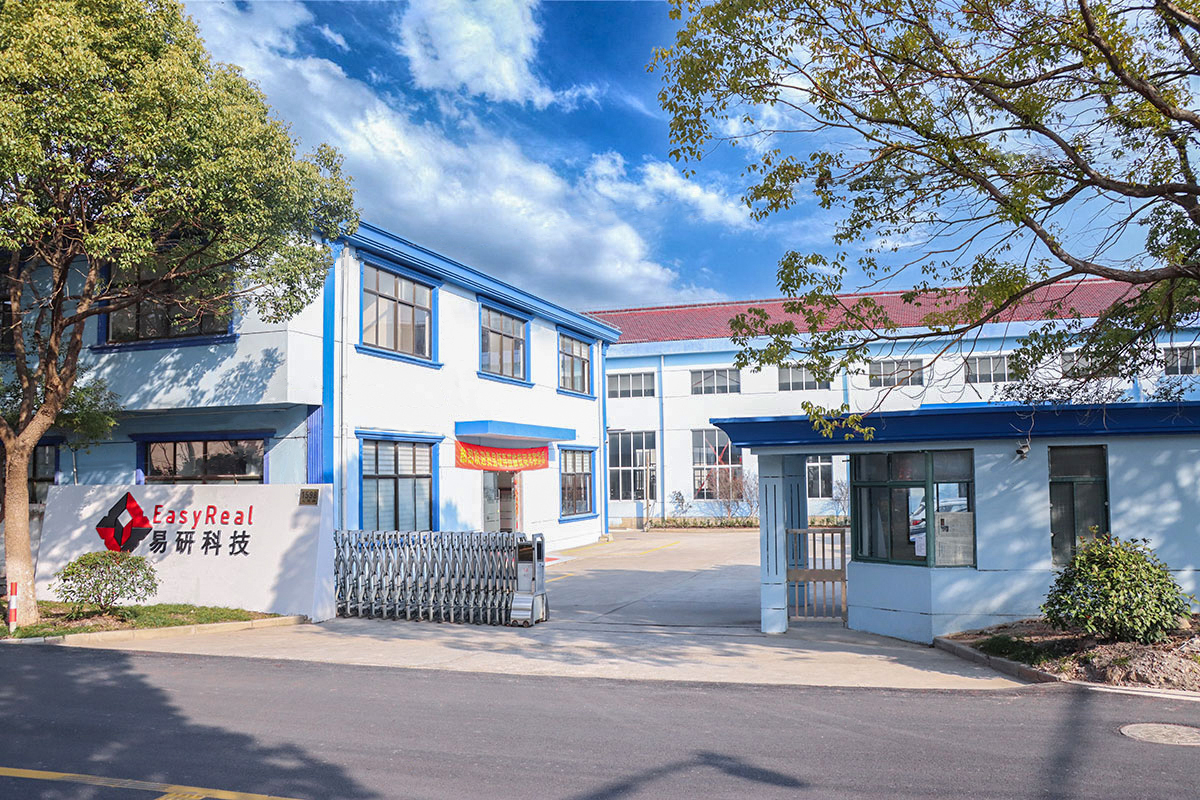

Shanghai EasyReal Machinery Co., Ltd was established in 2011, which specializing in manufacturing Lab equipment and Pilot Plant for fluid food and beverage and bioengineering, like Lab-scale UHT and Modular Lab UHT Line. We are committed to providing users with a full range of services from R&D to production. We have obtained CE certification, ISO9001 quality certification, SGS certification, and have 40+ independent intellectual property rights.
