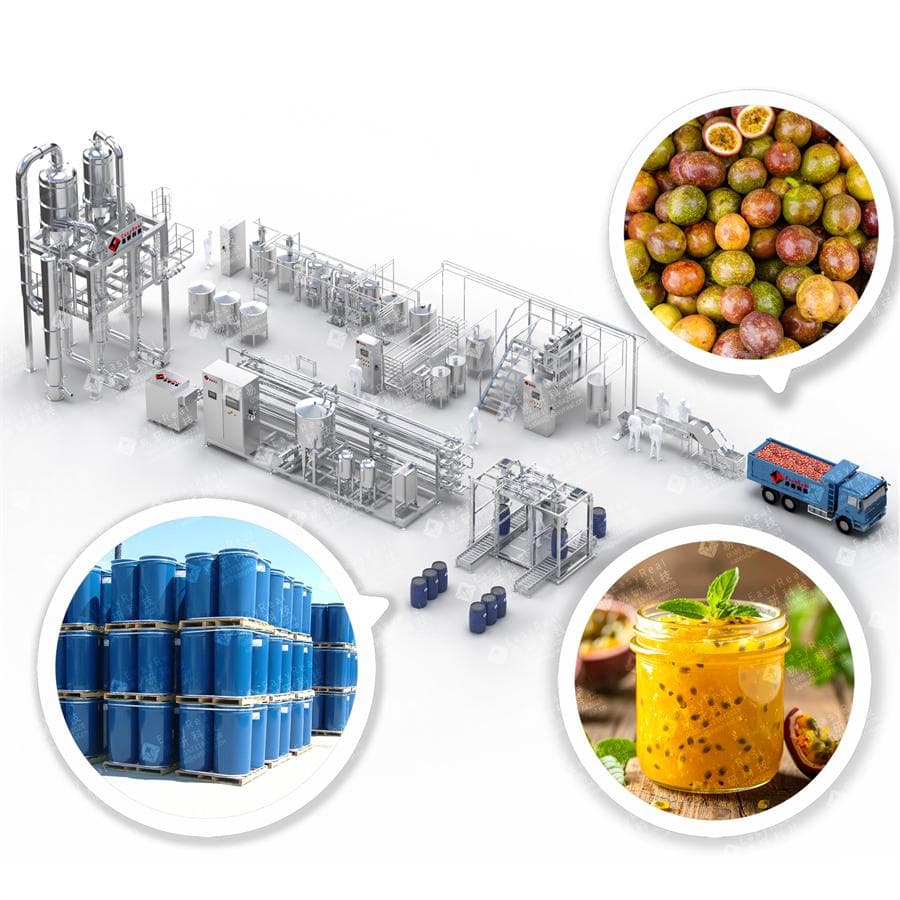

Passion Fruit Processing Line
The EasyReal line starts with fruit receiving and washing, designed to remove soil and surface germs from the thick rind. The passion fruit juice extractor splits each fruit to release the seed-pulp core without crushing the shell. This improves juice quality and reduces contamination.
Customers who want to keep seeds for other uses (e.g. cosmetics or snacks) can recover them separately. depending on your final product type. Juice is then pasteurized or sterilized through a tubular sterilizer, and sent to an aseptic filling station for shelf-stable storage.
Key technologies in this line include:
● Low-temperature aroma preservation
● Modular CIP system for easy cleaning
● Energy-saving evaporators for concentrate production
● Fully PLC-controlled interface for tracking data and settings
All equipment is food-grade SUS 304/316, with welded surfaces polished to avoid residue buildup. Customers can choose between manual, semi-auto, or fully automated lines.
Passion fruit is rich in healthy compounds that support digestion, boost immunity, and reduce fatigue. With increasing global demand for natural tropical beverages, this fruit has become popular in markets across Southeast Asia, Africa, South America, and Europe.
Typical application scenarios:
● Fresh juice manufacturers producing high-aroma tropical juice blends
● Export-focused factories in Vietnam, Colombia, or Kenya targeting European buyers
● Functional drink producers combining passion fruit with goji, ginger, or honey
● Concentrate makers preparing 50°Brix base for reconstitution in RTD drinks
End-product types include:
● Bottled or pouch-packed passion fruit juice
● Frozen seedless juice in drums or pouches
● Aseptic bag-in-box concentrate
● Blended drinks with pineapple, mango, or lime
EasyReal helps each customer design the line to fit local fruit varieties, peak harvest window, and packaging market demand. We provide line layout, utility maps, ROI analysis, and local partner connection if needed.
Choosing the right line depends on your raw material volume, end product type, and sales channels.
By Capacity:
● Small-scale (500–2000 kg/h): Ideal for regional juice startups or R&D pilot plants. Compact layout and manual bin feeding.
● Mid-size (2–5 tons/h): Fits SME processors exporting juice or NFC juice in drums or pouches.
● Large-scale (5–20 tons/h): For juice factories supplying national chains, industrial ingredient buyers, or aseptic processors.
By Final Product:
● Clear juice or beverage base: Requires enzymatic clarification + vacuum filter.
● Seedless juice: Needs precision seed separation and juice/pulp homogenization.
● Concentrate: Must include evaporator + Brix monitoring + aseptic filling.
● Fresh juice (short shelf life): May skip sterilizer, use plate pasteurizer + cold filling.
By Packaging Type:
● 200ml–1L bottles or pouches: add filling machine + capper + shrink tunnel
● 3–25L BIB drums: use double-head aseptic filler
● 200L drums: bulk export with single-head aseptic filling
● 1000L tanks: industrial ingredient use, packed in IBC totes
Our engineers help you check before you buy. We simulate product flow, utility needs, packaging size, and production cost. We also offer lab tests with your fruit sample.
Here’s the typical passion fruit processing workflow:
1. Fresh Fruit Receiving →
Fruit dumped in washing tank; debris and stones removed.
2. Washing and Brush Cleaning →
Fruit cleaned of soil and residue. Optional chlorine spray added.
3. Juice Extractor →
Peeling and destoning and then get the Pulp collected for next step.
6. Separation or vacuum degassing →
Use decanter or centrifugal separator to get juice with lower solid content. And adopt vacuum deaerator to removing the no condensate gas and to improve the quality of the end product.
7. Evaporation (if concentrate) →
Falling-film evaporator removes water. Brix adjusted to ~50°.
8. Pasteurization / Sterilization →
Tubular sterilizer heats to 95–121°C(customized). Ensures shelf life.
9. Aseptic Filling →
Bag-in-drum, bag-in-box, or bottle filling under sterile conditions.
10. CIP Cleaning System →
Automated cleaning for all contact surfaces using hot water, acid, and base.
Passion Fruit juice extractor
Working Principle:
The raw material enters the upper crushing unit from the feed hopper, where it is first pressed open. It then passes through the lower crushing unit for a second pressing. After two stages of pressing, the material is largely separated into peel and seeds before falling into the separation unit. Seeds fall through the screen holes while peels are discharged from the tail outlet. The seeds and juice proceed directly to the juice extraction stage. Inside, the pulp tray distributes the material evenly to the scraper and screen. Due to the rotary action of the scraper and the presence of the lead angle, the material moves toward the outlet end along the cylinder in a spiral trajectory. During this process, the material is subjected to centrifugal force while moving between the scraper and the screen cylinder, causing it to be broken down. The juice passes through the screen and is discharged from the juice outlet, while the seeds are discharged from the residue hopper, thereby achieving automatic separation.
Material:
Except for the transmission parts, all other components are made of stainless steel 304.
Decanter Centrifuge or Clarifier
For clear juice, this equipment spins at high G-force to remove suspended solids. EasyReal offers both two-phase decanters and vertical clarifiers.
● Structure: Horizontal or vertical bowl, auto discharge, VFD motor.
● Function: Separates pulp residue from juice to improve clarity.
● Advantage: Speeds up processing compared to traditional filtration.
● Adaptable to juice thickness and solid content.
● Food-contact parts in SS316; all sealed for hygiene.
● Reduces filter cloth usage and maintenance costs.
Falling-Film Evaporator
For concentrate production, this multi-effect evaporator removes water while preserving aroma. Product flows down inside tubes as steam heats outside.
● Structure: Column frame, tubular heat exchangers, condensers, aroma trap.
● Function: Evaporates water under vacuum to concentrate juice.
● Advantage: Gentle heat preserves color and flavor.
● Compared with forced-circulation systems, it uses less energy.
● Modular design for single, double, or triple-effect configurations.
● Aromatic compounds can be recovered and re-added.
Tubular Sterilizer
This sterilizer heats passion fruit juice using overheated water. Inner tubes carry the product, and outer tubes deliver heating medium.
● Structure: tubular type, PID-controlled heating.
● Function: Kills enzymes and germs to ensure shelf stability.
● Advantage: Prevents scorching or burning of high-sugar juice.
● Integrated with chart recorder and back-pressure valve.
● EasyReal units are skid-mounted and pre-wired for fast installation.
Aseptic Filling Machine
This filler loads sterilized juice into pre-sterilized bags or bottles under aseptic conditions. Filling head has steam-protected device.
● Structure: Double-head or single-head design, sterile chamber, touch-screen.
● Function: Ensures germ-free packaging for long shelf life.
● Advantage: Works with bags from 1L to 220L and beyond.
Three-point steam protection，Ensure sterile filling environment
● Widely used for drum-filling and BIB juice exports.
The EasyReal passion fruit line adapts to both yellow (Passiflora edulis flavicarpa) and purple (Passiflora edulis edulis) varieties. These types differ in acidity, aroma intensity, and pulp-to-seed ratio. Our machines adjust parameters like screen mesh size, heating curve, and flow rate to fit both types.
Key material flexibility features:
● PLC-controlled temperature steps for sterilization, evaporation, etc.
● Inline Brix monitoring during evaporation ensures product consistency.
● Multi-mode CIP handles sticky juice residues with hot water + alkali + acid rinse.
Output flexibility allows processors to switch between:
● NFC juice vs concentrate
● Bottle vs pouch vs drum packaging
● Single fruit vs blended tropical mixes (with mango, pineapple, etc.)
Switching between product formats only requires small changes in parameters or output fittings—no need to stop the full line. This helps operators react to market demand and raw fruit conditions quickly.
With the EasyReal line, you can test small batches, handle seasonal fruit fluctuations, and supply different product grades from one setup. This reduces downtime and increases line profitability.
EasyReal equips each passion fruit processing line with a centralized PLC + HMI control system, ensuring operators manage the entire workflow from one intuitive touchscreen. This system improves production safety, efficiency, and real-time decision-making.
The control system includes:
● Siemens or Allen-Bradley PLC with modular expansion options
● 10–15 inch HMI touch panels showing process flow, tank levels, temperatures, and pressures
● Digital alarms for abnormal events like temperature deviation or low fruit flow
● Recipe management for switching product types (juice, concentrate)
● Data logging and export via USB or Ethernet for production traceability
● Manual override mode for maintenance and troubleshooting
Key smart features:
● Operators can see info on screen, such as real-time °Brix, sterilization temp, filling volume, and valve positions.
● System records batch time, yield, energy usage, and cleaning cycles, helping reduce waste and improve OEE.
● The CIP system runs fully automatic cleaning cycles, with on-screen timers and chemical tracking.
● Customers can add remote monitoring via VPN or cloud dashboard, especially useful for global users managing multiple sites.
Compared to traditional relay-based panels, EasyReal’s smart system reduces training time, improves error handling, and lowers long-term maintenance. You gain a digital factory foundation ready for future automation or MES integration.
Whether you are a tropical fruit grower, juice brand, or export processor, EasyReal delivers the tools, expertise, and full-line systems to transform fresh passion fruit into global-ready products. We support you from design to delivery, including site layout, equipment customization, and long-term technical support.
Why choose EasyReal:
● Over 25 years of global experience in tropical fruit processing
● Trusted by clients in Vietnam, Kenya, Ecuador, Indonesia, and India
● CE, ISO, and GMP-compliant designs for international compliance
● Full technical drawings, manuals, and operator training
● Local installation teams and 24-hour online support
● Spare parts and upgrades available for over 10 years post-sale
We don’t just sell machines—we help you build a working factory:
● Process consulting based on your fruit variety, harvest timing, and end-user market
● Flexible payment and shipping options for overseas customers
● In-house trial lab for testing your passion fruit sample before purchase
● Professional after-sales service team fluent in English, Spanish, and more
